Part Number: A9ACD / Vendor ID #: 81

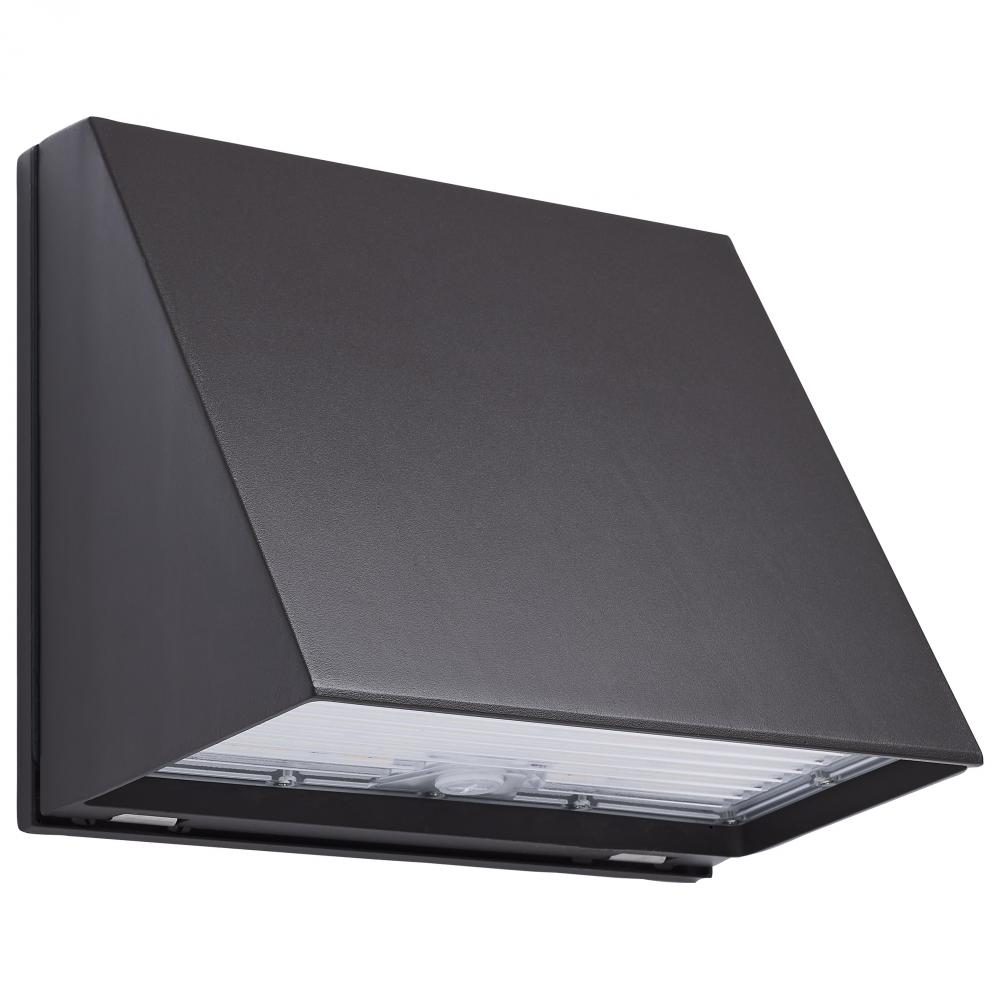

80/100/120 Watt LED Cutoff Wall Pack; 3K/4K/5K CCT; Field Selectable; Bronze; 120-347 Volt
$162.99
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer has 245 items available.

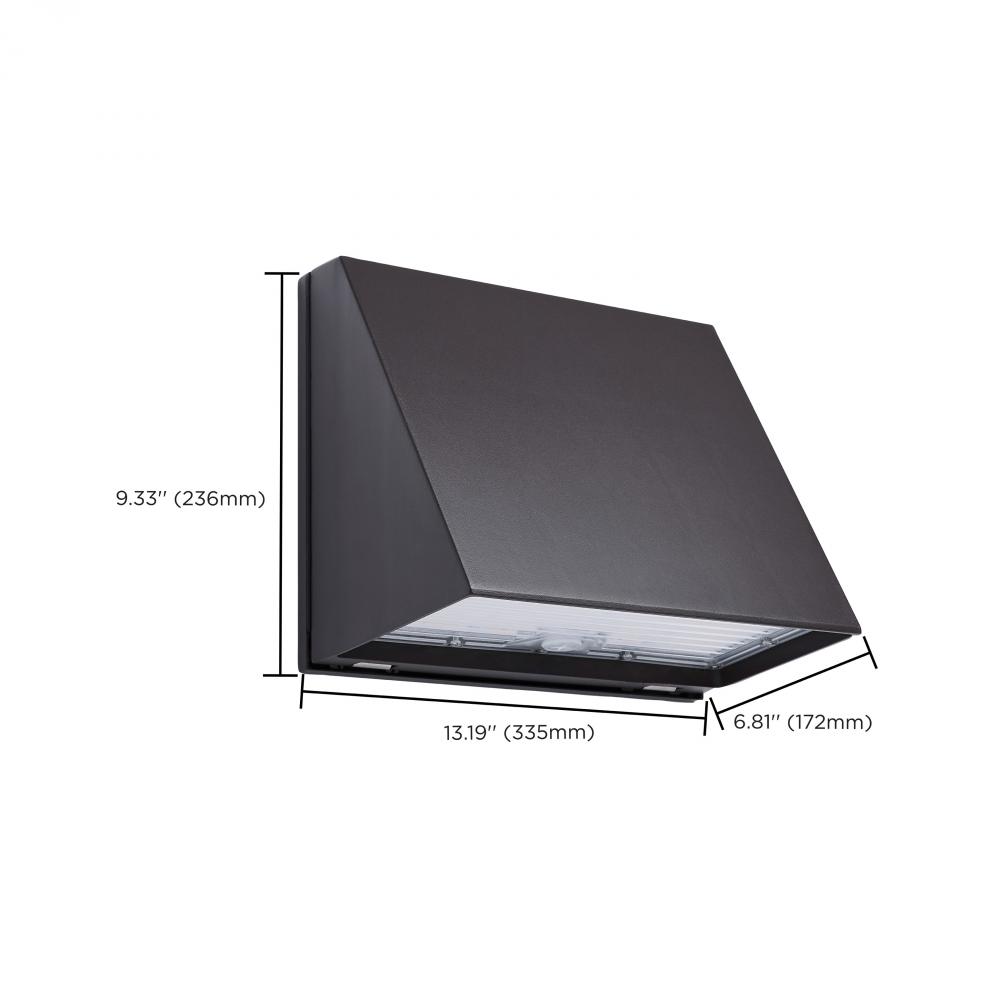

Dimensions
Height: 9.36"
Width: 13.28"
80/100/120 Watt LED Cutoff Wall Pack; 3K/4K/5K CCT; Field Selectable; Bronze; 120-347 Volt
Category:
Exterior
Subcategory:
Wall Lights
Option:
LED
Prop 65
Category:
Wall Pack
Sub Category:
Full Cutoff
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
9.449999999999999
Each Length:
15.35
Each Width:
14.06
Lumens:
12107L-17789L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.667-0.231/0.833-0.288/1.000-0.346A
ANSI Base:
Integrated
Beam Angle:
106
B_U_G_Rating:
B2-U0-G2
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Function:
0-10V Dimming
DLC Classification:
Premium
DLC Primary Use:
Outdoor Full-Cutoff Wall-Mounted Area Luminaires
Each Cube:
1.1803
Each Quantity:
1
Efficacy:
201.78-206.25/180.69-187.49/170.59-177.89 LPW
FCC Compliant:
Yes
Feature 1:
Full Cutoff with Zero Uplight
Feature 10:
5 Year Warranty
Feature 2:
B2-U0-G2 Rating
Feature 3:
CCT and Wattage Selectable
Feature 4:

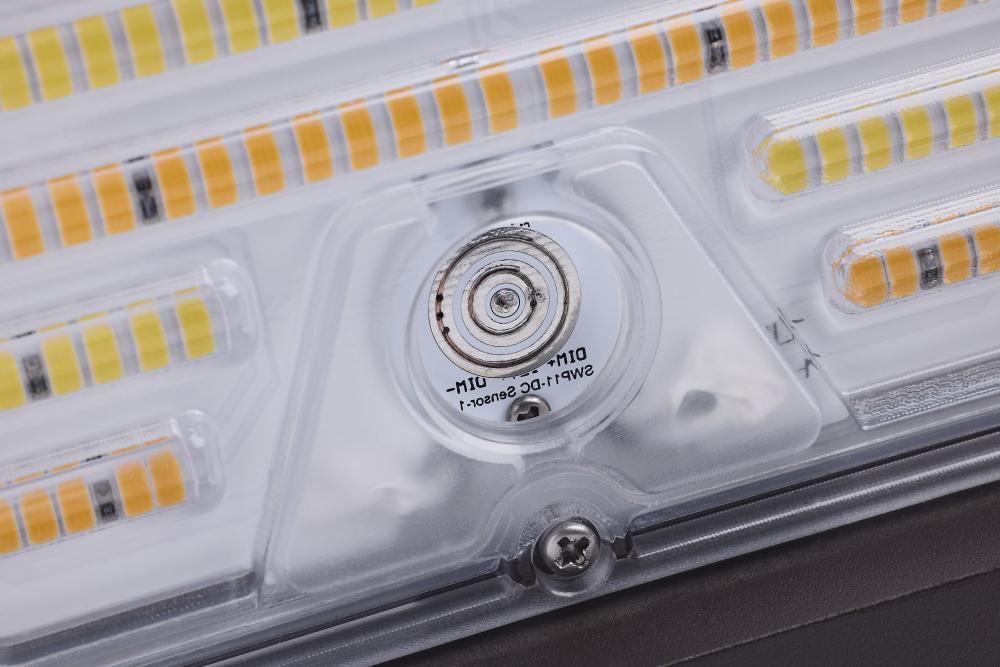

Integrated Sensor Port
Feature 5:
Integrated By-passable Photocell
Feature 6:
Range Voltage 120-347V
Feature 7:
IP65 Rated
Feature 8:
Bronze Die-Cast Aluminum Housing
Feature 9:
50,000 Hour Functional Life
Finish Family:
Bronze
Flicker Free:
No
Has Driver:
No
HID Equiv:
400W
Impact Rating (IK):
IK06
Indoor Outdoor:
Outdoor
IP Rating:
IP65
Lens Finish:
Opaque
Lens Material:
Polycarbonate (PC)
Long Description:
Illuminate outdoor spaces with SATCO NUVO's 65-556 architecturally styled LED Full Cutoff Wall Pack. Operating on 120-347V with zero up light, this fixture features wattage selectability of 80W, 100W, and 120W, delivering a maximum output of 17,789 lum
Material:
Die-Cast Aluminum
Mounting Procedure:
Wall
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Yes - Bypassable
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
7
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Illuminate outdoor spaces with SATCO NUVO's architecturally styled LED Full Cutoff Wall Packs. Operating on 120-347V with zero up light, these cutoff wall packs are perfect to eliminate wasted light and to cut down on light pollution. A by-passable pho
Safety Listing:
cULus
Sensor Operating Temperature:
-25C(-13F) to +50C (+122F)
Sensor Type:
PIR
Short Description:
LED FULL CUTOFF WALL PACK
Specification Notes:
Type II Light Distribution; For International Dark Sky Compliance the fixture CCT must be set to 3000K and installed in a downward facing and locked position
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Weight Lb.:
9.74
