Product Overview

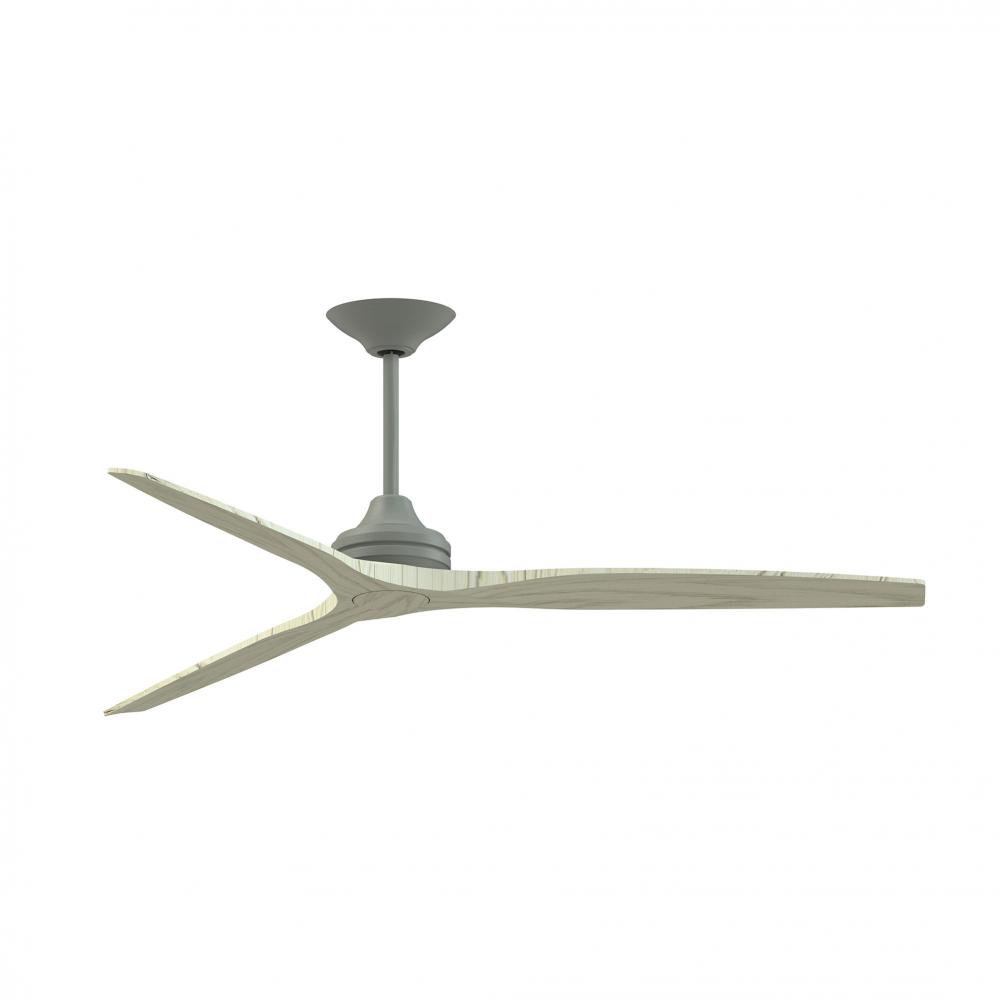

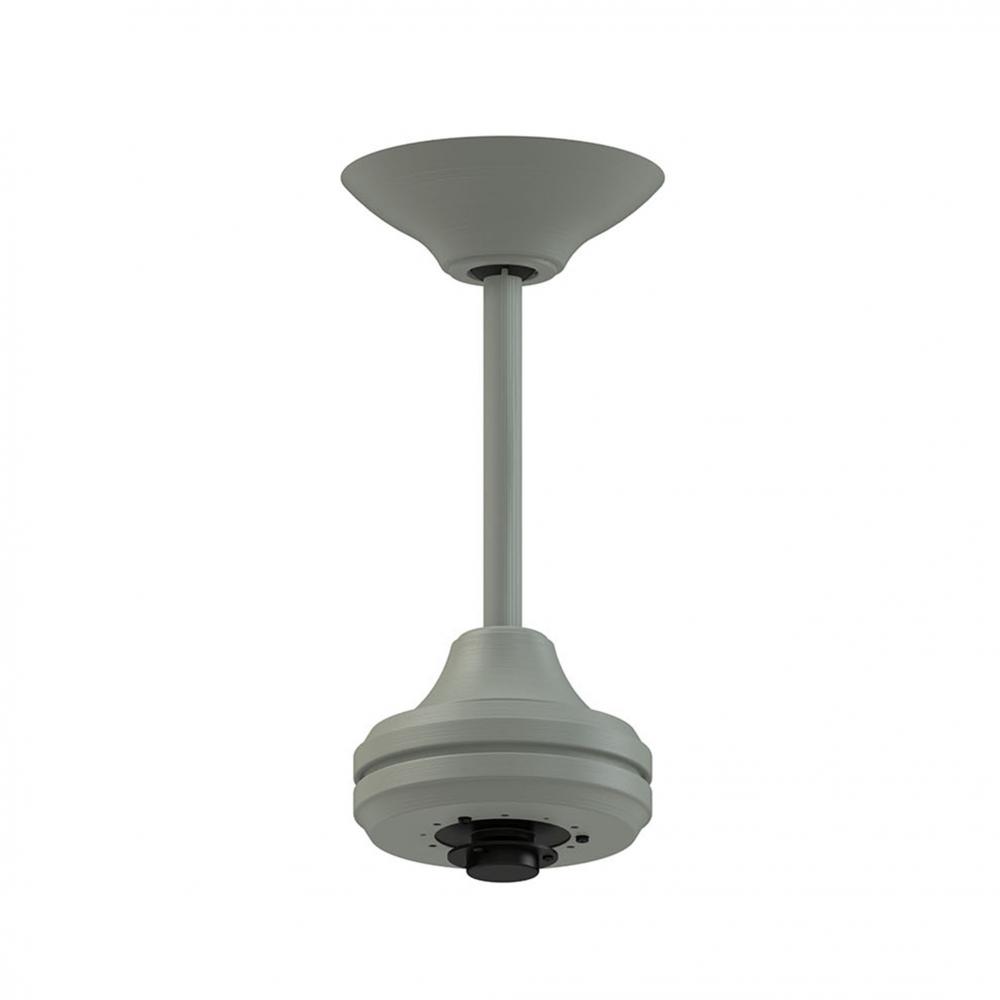

The Spitfire DC Custom features an exquisite three bladed design with many rich finish offerings to choose from. The Spitfire DC Custom is available in a 64, 72, 84 and 96 inch blade sweep (sold separately), and an optional LED light kit that features the correlated color temperature (CCT) Select functionality (sold separately). Handheld remote included. *Damp rated for indoor or outdoor use. *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use

Standard Information

Category:

Fans

Subcategory:

Fan Motor Without Blades

Finish:

Black

Miscellaneous

Refinement Options

Category:

Fan-Multi

Finish:

Antique Graphite

Family:

Spitfire

Voltage:

120 V

Air Flow CFM:

12900

Air Flow Efficiency:

386

Canopy:

8.76 Dia x 2.52 H

Harmonized Codes:

8414.51.3000

Light Kit Included:

No

Motor Size:

153 x 25

Motor Type:

DC

Ship Carton Height:

10.94

Ship Carton Length:

14.37

Ship Carton Width:

10.43

Ship Weight:

16.65

Sold By:

Each

Warranty:

Limited Lifetime Warranty

Weight:

15.17

Airflow Efficiency Low:

1049

Airflow Efficiency Medium:

880

Avg Airflow Efficiency:

376

Avg CFM Energy:

7429

Avg Energy Use:

20

Avg Estimated Yearly Energy Cost:

6

Avg Estimated Yearly Energy Cost on HIGH:

9

Cap Included:

No

Carton Cubic Feet:

0.9489

Case Height:

10.94

Case Length:

14.37

Case Quantity:

1

Case Weight Pounds:

16.65

Case Width:

10.43

CEC Uploaded:

Yes

Ceiling To Blade Edge:

19.69

Ceiling To Bottom (No Light Kit):

19.69

Ceiling To Bottom (With Light Kit):

21.35

CFM Low:

2958

CFM Medium:

7355

Country of Origin:

China

Current Draw High:

0.47

Current Draw Low:

0.06

Current Draw Medium:

0.14

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

Downrod Length:

12

Exempt from DOE Procedure:

No

Fan Energy Star 4:

Yes

Housing Diameter:

8.07

Included Control:

TR305

Included Control Type:

Handheld

Leadwire:

80

Location Rating:

Damp

Max Ceiling Slope:

27

Max Length:

96

Max Width:

96

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number Of Speeds:

16

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High:

112

RPM Low:

29

RPM Medium:

67

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60HZ

Watts High:

33

Watts Low:

3

Watts Medium:

8

12900 Cfm On High

16 Speed Dc Motor With Reverse Switch, Fan Speed, Light Controls, Fresh Air, Safe Exit, Sleep Timer And Home Away Features

Compatible with most smart home devices using the Fanimation fanSync WiFi App

Energy Star Most Efficient 2022

Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Cct Select Led Light Kit Available (sold Separately)

Tr305 Handheld Remote With 23a Battery Included
