Product Overview

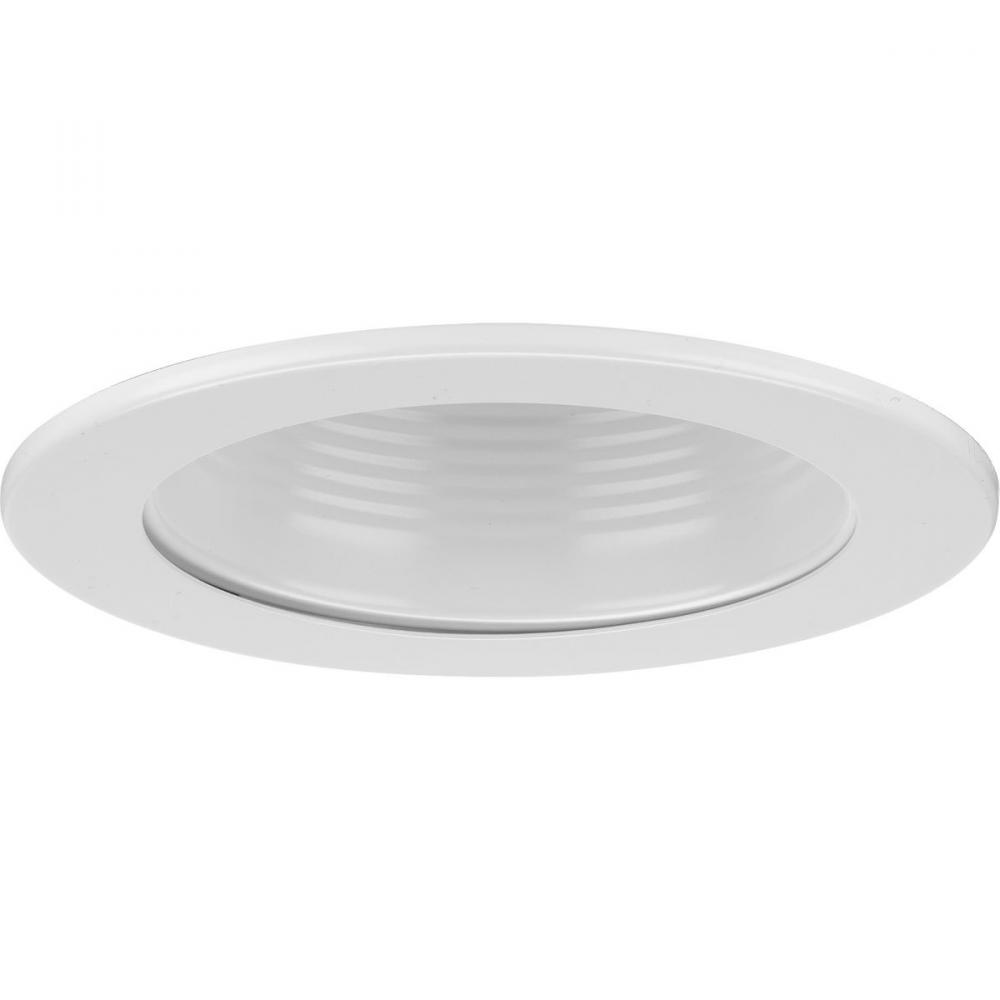

The 4 in. Step Baffle Trim finished in Satin White offers a smaller aperture downlighting solution. The two-piece construction of the trim includes a steel trim flange that eliminates light leaks around the flange and allows it to cover irregular ceiling openings. The surface baffles on the aluminum reflector offer a classic look and break-up the lamp reflection producing a more comfortable light. The integrated friction springs force the trim to fit snugly against the ceiling, providing a secure trim installation and minimizing air leak. UL-CUL damp location rating makes this trim ideal for use in a variety of room settings in conjunction with 4 in. new construction or remodel recessed housing.

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White

Style:

Traditional

Option:

Energy Efficient

Damp Rated

Prop 65

Voltage:

100-120

Mount Type:

Chain

Location Rating:

Damp Rated

Refinement Options

Category:

Recessed

Finish:

Satin White

Style:

Utilitarian;Traditional;Modern;Transitional

Option:

Damp Rated

Energy Efficient

Prop 65

Family:

4" Recessed Trim

Voltage:

120

Bulb Type:

PAR20

Keyword(s):

4 inch trim recessed functional light lights lighting fixture fixtures residential commercial white medium base bulb bulbs lamp lamps led incandescent dimmable 1 one

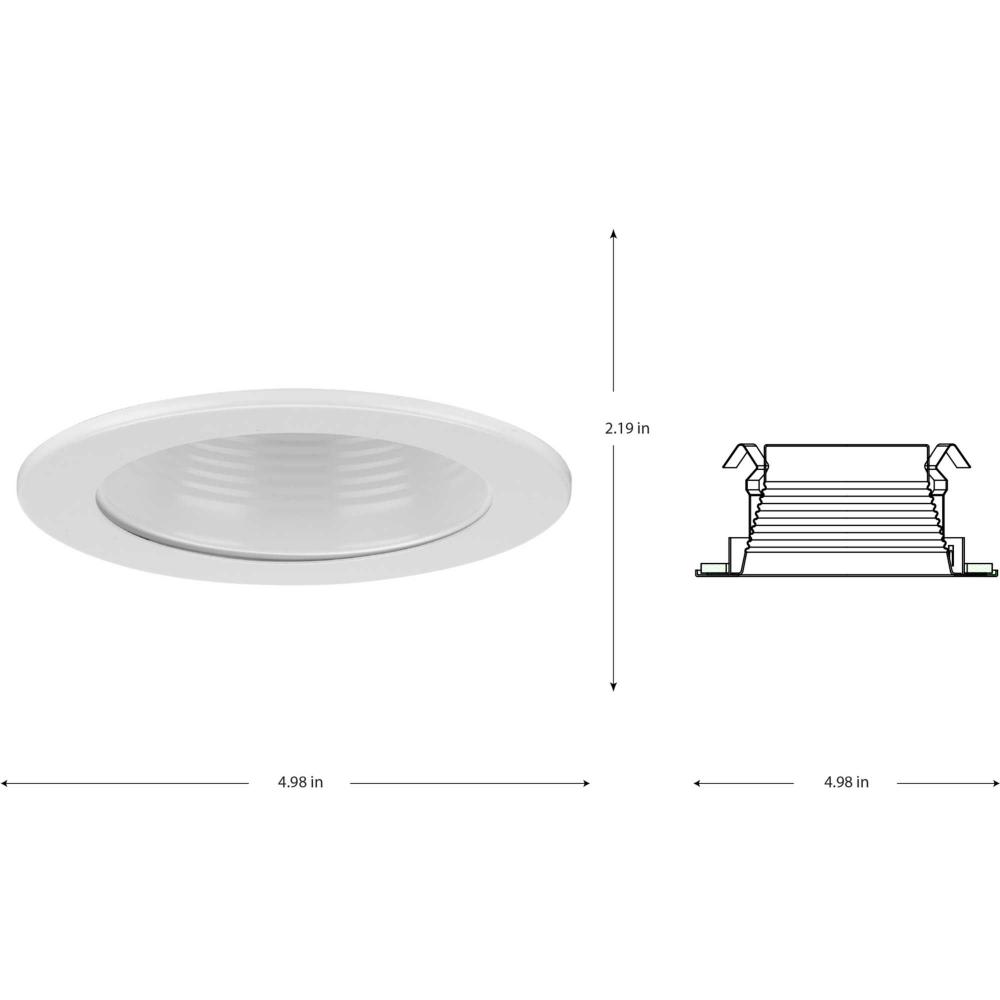

Length:

4.94

Material:

Aluminum

Ship Carton Height:

2.5

Ship Carton Length:

5.43

Ship Carton Width:

5.43

Ship Weight:

0.04

Special Features:

Durable, two-piece steel and aluminum construction;Trim features a steel flange that eliminates light leaks around the flange and allows it to cover irregular ceiling openings;The integrated friction springs force the trim to fit snugly against the ceiling

Warranty:

1-Year Limited Warranty

Weight:

0.29

Bulb Base:

E26

Bulb Included:

No

Can be Mounted Up or Down:

No

Certified Listed Location:

Damp Location Listed

Construction Material Main part:

trim

Construction Material Secondary:

Steel

Construction Material Secondary part:

Trim

Convertible Fixture Includes Both Mounts:

No

Country of Origin:

CN

Dark Sky:

No

Energy Efficient:

Yes

Energy Star:

No

Finish Type:

Powder Coat

Grounded Convenience Outlet included:

No

JA8:

No

Lamp Type Basic:

Incandescent

Lamp Wattage:

50

Mount Location:

Ceiling in recessed housing

Post Top Fits Standard:

No

Prop 65:

View

Prop 65 Description:

View

Quick Install Canopy:

No

Quick Link Connector:

No

Room Type:

Bathroom;Bedroom;Bonus Room;Closets;Garage;Great Room;Kitchen;Living Room;Laundry;Utility

Safety Rating:

cULus

Title 24:

No

Weight of Fixture Exceeds NEC Limits:

No
